Safe, Controlled Water Flow for High-Rise and High-Pressure Fire Systems

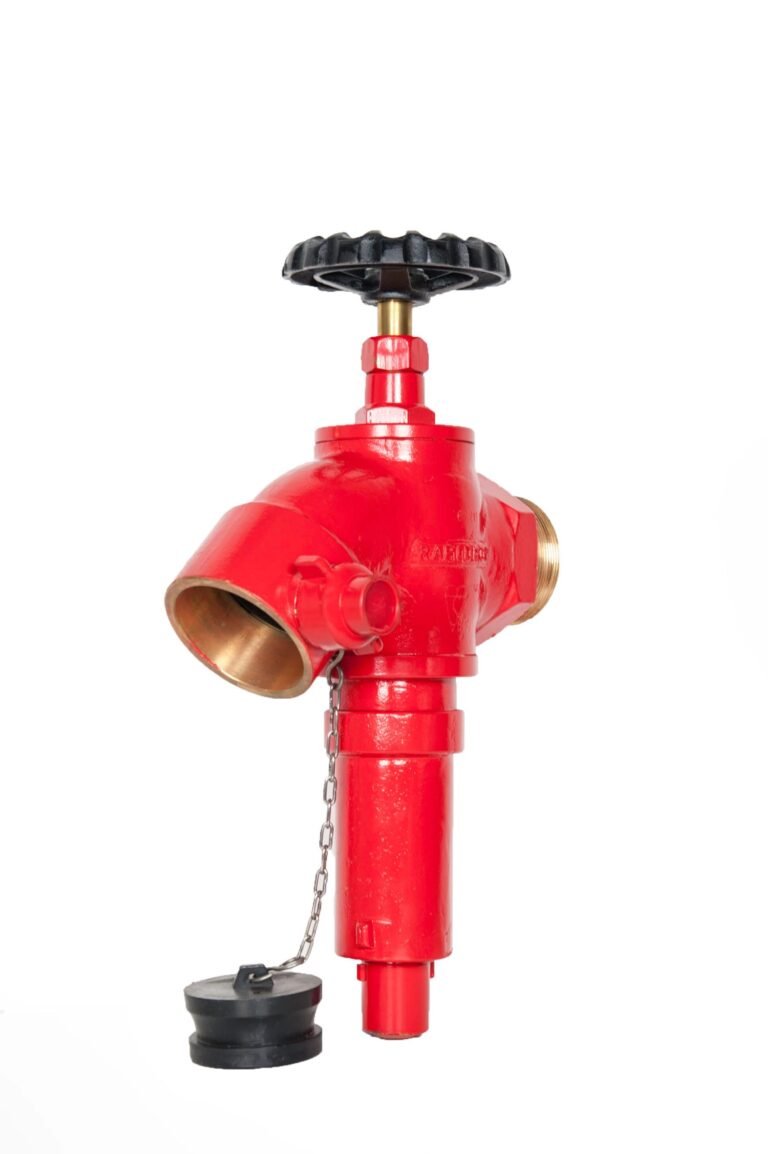

Pressure Reducing Landing Valves are specialized fire hydrant system components designed to maintain a constant, safe outlet pressure regardless of the inlet pressure fluctuations, especially in high-rise buildings, vertical pipelines, and pressurized fire systems. These valves ensure that fire personnel receive water at a controlled pressure, avoiding equipment damage, hose bursts, or ineffective firefighting caused by excessive force.
At FireX.pk, our pressure-reducing landing valves (PRLVs) are engineered with built-in regulators to automatically adjust the outlet pressure to safe, usable levels. They comply with BS 5041 Part 1 and BS 5154 standards, making them ideal for multi-story commercial, residential, and industrial installations.
Key Benefits:
- Automatically regulates water pressure at the outlet
- Ideal for high-rise and pressurized hydrant systems
- Prevents over-pressurization of fire hoses and nozzles
- Enhances safety for firefighters and minimizes equipment wear
- Available in various configurations and pressure ratings
Ideal For:
- High-rise apartment and office towers
- Hospitals, airports, and shopping malls
- Hotels, schools, and stadiums
- Industrial complexes and energy plants
- Facilities with vertical firefighting pipe risers
Product Variants:
- Oblique Pressure Reducing Valve (45° body for cabinet installation)
- Right-Angle Pressure Reducing Valve (90° layout for vertical pipe systems)
- Flanged or Screwed Inlet depending on pipe compatibility
- Preset Pressure Levels – Typically 4, 6, 8, or 10 bar outlet
Technical Specifications:
- Body Material: Gunmetal or bronze (standard), stainless steel (optional)
- Inlet: 2.5” BSP Female or flanged PN16
- Outlet: 2.5” BS 336 Instantaneous Male
- Working Pressure: Up to 20 bar
- Outlet Pressure Range: 3–10 bar (preset or field adjustable)
- Seat Type: Stainless steel or EPDM rubber
- Operation: Manual handwheel with flow control
- Standards: BS 5041 Part 1, BS EN 671-2, ISO 9001
Optional Features:
- Pressure gauge for real-time monitoring
- Blank cap and chain
- Lockable or key-operated fire cabinets
- Signage and labeling plates
- Matching fire hose and nozzle kits
Why Choose FireX Pressure Reducing Landing Valves?
At FireX.pk, we supply tested, certified Pressure Reducing Landing Valves that are built for reliability and safety in Pakistan’s tallest buildings and most demanding environments. Our valves are precision-machined and hydrostatically tested to ensure performance under real-world emergency conditions.
We provide complete project support, including system design, site assessment, valve sizing, installation, and compliance documentation for fire safety audits.
